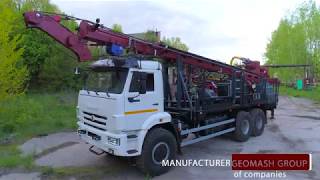

New Geomash Water well Drilling URB-210 drilling rig
≈ MYR 664,600
Astana9579 km to "United States/Columbus"
If you decide to buy equipment at a low price, make sure that you communicate with the real seller. Find out as much information about the owner of the equipment as possible. One way of cheating is to represent yourself as a real company. In case of suspicion, inform us about this for additional control, through the feedback form.
Before you decide to make a purchase, carefully review several sales offers to understand the average cost of your chosen equipment. If the price of the offer you like is much lower than similar offers, think about it. A significant price difference may indicate hidden defects or an attempt by the seller to commit fraudulent acts.
Do not buy products which price is too different from the average price for similar equipment.
Do not give consent to dubious pledges and prepaid goods. In case of doubt, do not be afraid to clarify details, ask for additional photographs and documents for equipment, check the authenticity of documents, ask questions.
The most common type of fraud. Unfair sellers may request a certain amount of advance payment to “book” your right to purchase equipment. Thus, fraudsters can collect a large amount and disappear, no longer get in touch.
- Transfer of prepayment to the card
- Do not make an advance payment without paperwork confirming the process of transferring money, if during the communication the seller is in doubt.
- Transfer to the “Trustee” account
- Such a request should be alarming, most likely you are communicating with a fraudster.
- Transfer to a company account with a similar name
- Be careful, fraudsters may disguise themselves as well-known companies, making minor changes to the name. Do not transfer funds if the company name is in doubt.
- Substitution of own details in the invoice of a real company
- Before making a transfer, make sure that the specified details are correct, and whether they relate to the specified company.
Seller's contacts
1,200 m
Kazakhstan, Astana
400 m
Kazakhstan, Astana
300 m
Kazakhstan, Astana
100 m
Kazakhstan, Astana
250 m
Kazakhstan, Kostanay
200 m
Kazakhstan, Kostanay
350 m
Kazakhstan, Kostanay
- Hydrogeological, industrial water well drilling
- Drilling for water depression wells, ventilation bore-holes, bumping wells, energy wells, freezing wells
- Geological exploration
Drilling Process:
Fluid/Pneumatic Rotational Non-Core Drilling : 800Meters
Rotational Reverse Circulation Drilling (Airlift):150 Meters
Percussion Rotary Reverse Circulation Drilling (RC Process):400 Meters
Pneumatic Percussion Drilling: 500 Meters
Applied drilling technologies:
- Rotary drilling with direct water circulation
- Rotary with RC water circulation drilling (air lift technology)
Technical Characteristics :
APPLIED CHASSIS: 6*6TRUCKS, Semitrailers
RIG DRIVE :Main vehicle engine through PTO to Transfer box
NOMINAL POWER TAKE OFF CAPACITY : 160KW
NOMINAL HYDRAULIC SYSTEM PRESSURE MPA NO LESS: 20 (204)(KGF/SM2)
MAST : Vertical, framework designed
HEIGHT :12 Meters
PAYLOAD : 20 (196)TF (KN)
CROWN BLOCK : One string; 2-4 lines stringup
1-ST ROTARY HEAD VERSION: For rotary drilling with reverce water circulation drilling (air lift technology) method
ROTARY HEAD FREQUENCY (1-ST RANGE): 0-60Rpm
ROTARY HEAD TORQUE (1-ST RANGE): 1500 KGSM
ROTARY HEAD FREQUENCY (2-ND RANGE): 0-130 Rpm
ROTARY HEAD TORQUE (2-ND RANGE):700 KGSM
ROTARY HEAD PAYLOAD: 20 000 KGF
DIAMETER OF THE ROTARY HEAD STRAIGHT THROUGH SPINDEL HOLE: NO LESS 130MM
ROTARY HEAD EQUIPMENT SET FOR ROTARY DRILLING WITH REVERSE WATER CIRCULATION DRILLING (AIR LIFT TECHNOLOGY) METHOD WITH USE OF SEPARATE COMPRESSOR:
Upper swivel with hole 130 mm.
Down air swivel with inner tool-joint thread 3-171 for the special drilling pipes and air pressure line connection
2-ND ROTARY HEAD VERSION: For rotary drilling with wash/airflush
ROTARY HEAD FREQUENCY (1-ST RANGE) : 0-60Rpm
ROTARY HEAD TORQUE (1-ST RANGE):1500 KGSM
ROTARY HEAD FREQUENCY (2-ND RANGE), 0-400 Rpm
ROTARY HEAD TORQUE (2-ND RANGE):400 KGSM
ROTARY HEAD PAYLOAD:20 000KGF
DELIVERY MECHANISM:Hydraulic cylinder with polyspast-rope delivery mechanism
MAX. WELL BOTTOM TOWING CAPACITY: 6,5 (64,46)TF (KN)
MAX. LIFTING CAPACITY:20 (19,5)TF (KN)
ROTARY HEAD STROKE, M 7,1
MAX. DRILLING RODS LENGTH: 6,0M
DRILLING WINCH Hydraulic drive, reversed
WINCH TOWING CAPACITY, 3,0/5,0/10,0*TF
